Thông tin chi tiết sản phẩm:
|
| Đường kính ngoài: | 38,885mm | Kích thước lỗ: | 22,225mm |
|---|---|---|---|
| Mô -men xoắn bình thường: | 63nm | Cân nặng: | 0,03kg |
| Số lượng sprags: | 12 | Tốc độ vượt quá (bên ngoài): | 750 vòng/phút |
| Tốc độ vượt quá (bên trong): | 1500 vòng / phút | Độ dày: | 10 mm |
| Vật liệu Sprag: | GCR15 | Xếp hạng chính xác: | P0 |
| Loại con dấu: | Mở | Kiểu: | Sprag |
| Độ cứng bề mặt: | HRC 60-62 | Độ cứng lõi: | HRC35-45 |
| Taper tối đa: | 0,007mm mỗi 25 mm | ||
| Làm nổi bật: | 22.225mm bore sprag clutch bearing,63Nm torque one way clutch bearing,DC2222C sprag clutch bearing |
||

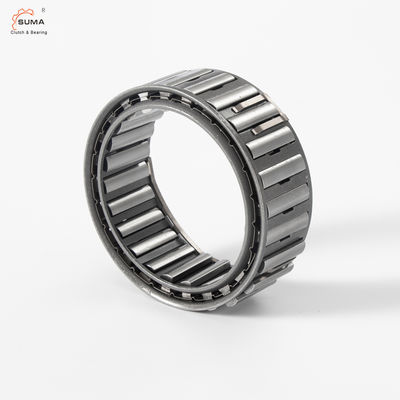

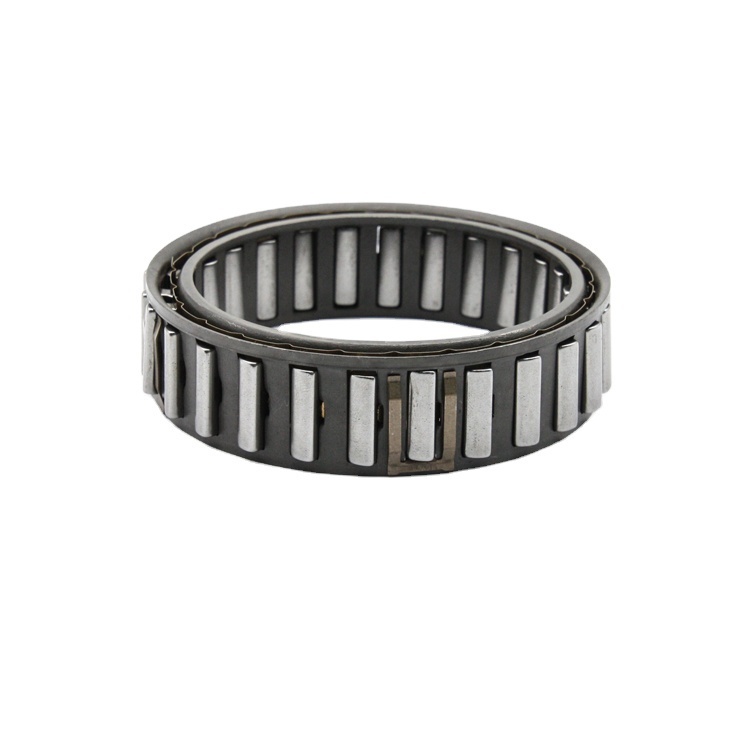

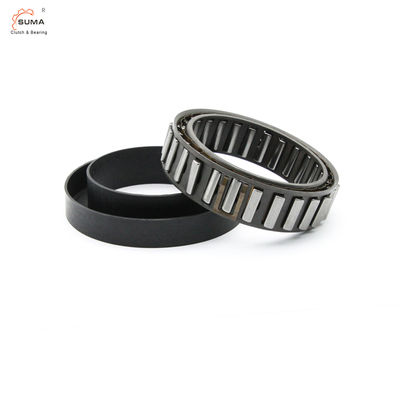

The DC2222C is a high-performance sprag type freewheel overrunning clutch bearing designed for industrial applications requiring reliable one-way rotation control.
| Item | DC2222G-N |
|---|---|
| Outer Diameter | 38.885mm |
| Bore Size | 22.225mm |
| Nominal Torque | 63 |
| Weight | 0.03kg |
| Sprags Quantity | 12 |
| Overrunning Speed (outer race) | 750 |
| Overrunning Speed (inner race) | 1500 |
| Port | Shanghai; Ningbo |
| Delivery Time | 1-2 Days |
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.
Surface hardness: HRC 60 to 62 (minimum 0.6mm depth)
Core hardness: HRC 35 to 45
Surface roughness: ≤ 22CLA
Maximum taper between races: 0.007mm for 25mm width
| Type | Drag Torque (NM) | Size (mm) | Number of Clips |
|---|---|---|---|
| DC2222G | 50 | 22.225 | |
| DC2776 | 95 | 27.762 | |
| DC3034 | 99 | 30.34 | |
| DC3175(3C) | 127 | 31.75 | 3 |
| DC3809A | 220 | 38.092 | |
| DC4127(3C) | 179 | 41.275 | 3 |
| DC4445A | 290 | 44.45 | |
| DC4972(4C) | 245 | 49.721 | 4 |
| DC5476A | 420 | 54.765 |
Standard Packaging: Each unit in white box + 19*18*9cm box + 29*28*19CM carton box
Bulk Packaging: For orders over 100kg - Carton box + Wooden Box/Wooden Pallet
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Samples are available for quality verification and testing purposes.
Small items: In stock, ready for immediate shipment
Medium Items: 10-15 Days production time
Big items: 20-25 Days production time
