| Nguồn gốc: | Jiangsu, Trung Quốc |
| Hàng hiệu: | SUMA |
| Số mô hình: | CSK30 |
| Số lượng đặt hàng tối thiểu: | 2 |
|---|---|
| Giá bán: | $3.50-3.80 |
| Kiểu: | Sprag | Xếp hạng chính xác: | P0 |
|---|---|---|---|
| Loại con dấu: | Niêm phong | Vật liệu: | GCR15 |
| Đường kính bên trong: | 30 mm | Đường kính ngoài: | 62mm |
| Độ dày: | 16mm | công suất mô-men xoắn: | 138nm |
| Cân nặng: | 0,21g | Tải động: | 11,7kn |
| Tải trọng tĩnh: | 6.45kn | Tốc độ tối đa: | 4200min-1 |
| Kéo mô -men xoắn: | 4.4ncm | Loạt mang: | 6206 |
| Loại Sprag: | Formchromed | ||
| Làm nổi bật: | 30mm sprag clutch bearing,sealed one way bearing,CSK30 one way clutch bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining |
| Type | sprag, sprag type |
| Precision Rating | P0 |
| Seals Type | sealed |
| Material | Steel, GCr15 |
| Product name | csk sprag clutch bearing |
| Brand | SUMA |
| OEM | ACCEPT |
| Stock | rich |
| Package | wooden box, tube, pulley |
| Port | Shanghai;Ningbo |
| Delivery time | 7-10 days |

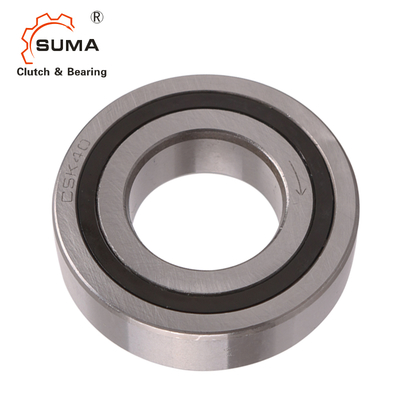

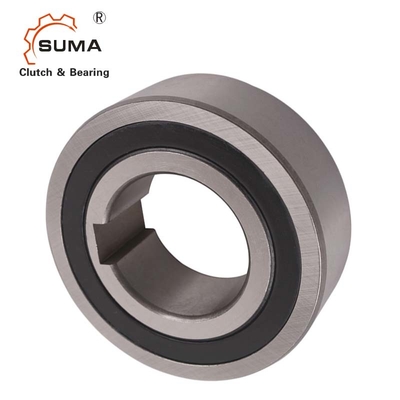

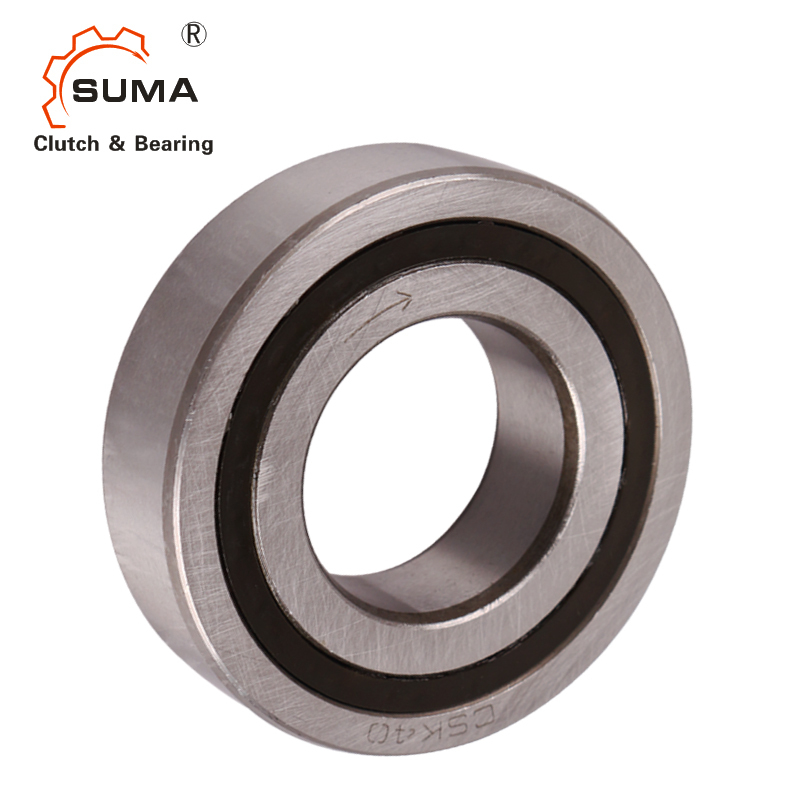

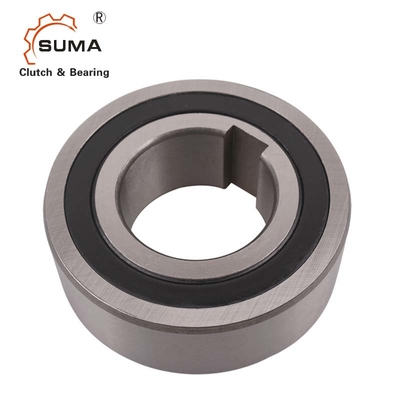

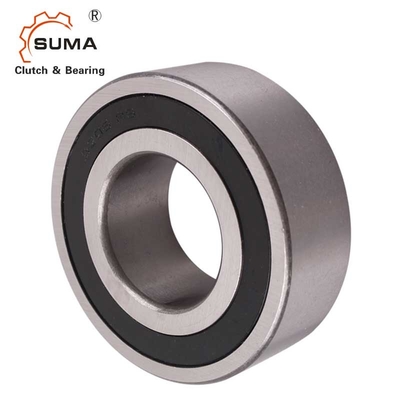

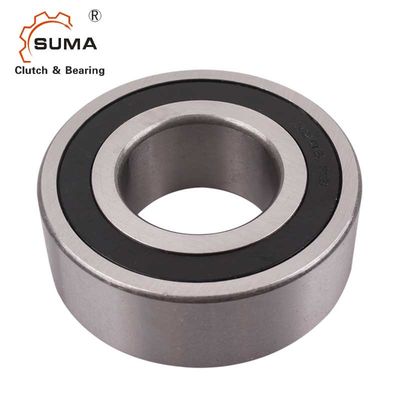

The CSK30 One Way Bearing is a sprag type freewheel integrated into a 62 series ball bearing (except size 8 and 40). This bearing comes supported, delivered grease lubricated and protected against dust particles larger than 0.3mm.
| Product name | CSK30 one way sprag bearing |
|---|---|
| Model | CSK30 |
| Material | GCr15 |
| Inner diameter | 30mm |
| Outer diameter | 62mm |
| Thickness | 16mm |
| Torque capacity | 138Nm |
| Weight | 0.21g |
| Package | Carton Box / Wooden box |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque |
|---|---|---|---|---|---|
| CSK(KK) | 30 | 6206 | 138 Nm | 0.21 kg | 4.4 Ncm |
Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a specialized manufacturer producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and other bearings with high technology.
We follow "Best Quality, Best Price, Fast Delivery, Best Service" to satisfy all our customers.
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
