Name: GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: GFK 35
Price: 50.00 USD
Availability: InStock

Nhà Sản phẩm Vòng bi ly hợp một chiều

GFK35 Sprag Type Clutch Bearing 35mm ID 55mm OD 204Nm Torque

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Jiangsu, Trung Quốc
Hàng hiệu:	SUMA
Số mô hình:	GFK 35

Thanh toán:

Số lượng đặt hàng tối thiểu:	2
Giá bán:	$42-58

Tiếp xúc

Chi tiết sản phẩm

Kiểu:	Sprag	Xếp hạng chính xác:	P0
Loại con dấu:	Niêm phong	Vật liệu:	Thép Gcr15
Độ dày:	27mm	công suất mô-men xoắn:	204nm
Cân nặng:	0,2kg	Đường kính bên trong:	35mm
Đường kính ngoài:	55mm	Loại mang:	Vòng bi do Sprag
Kết cấu:	Loại Sprag	tốc độ vượt quá:	4600 phút-1 (động), 3200 phút-1 (tĩnh)
Tải động:	8200N (con lăn), 8500N (bóng)	Tải trọng tĩnh:	5200N (con lăn), 5700N (bóng)
Loạt mang:	5907
Làm nổi bật:	35mm sprag clutch bearing , one way clutch bearing 55mm OD , high torque clutch bearing 204Nm

Freewheel One Way Bearing GFK35 Ball Bearing Sprag Type Clutch GFK 35

Product Attributes

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining
Type	Sprag
Precision Rating	P0
Seals Type	Sealed
Material	Steel
Product Name	Sprag Type Clutch
Thickness	27MM
Torque Capacity	204Nm
Weight	0.2 Kg
Delivery Time	1-2 Days
Package	Carton Box
Bearing Type	Sprag Bearing
Structure	Sprag Type

Product Description

The GFK35 Sprag Type Clutch is a sprag freewheel integrated into a 59 series ball bearing, designed to provide high torque capacity for minimal outside diameter.

Key Features

Model: GFK35
Torque capacity: 204Nm
Inner diameter: 35mm
Outer diameter: 55mm
Material: GCr15
Thickness: 27mm
Weight: 0.2kg
Package options: Carton Box / Wooden box or customized
Payment terms: TT, L/C, D/A, D/P, Western Union
Delivery time: 5-7 days after order confirmation if no stock

Installation Instructions

Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Product Specifications

Type	Size (mm)	TKN1 (Nm)	n imax2 (min-1)	n amax3 (min-1)	Bearing Series	C (N)	C0 (N)	D (mm)	L (mm)	r (mm)	Weight (kg)
GFK	20	51	5500	4000	5904	5600	2900	37	23	0.5	0.09
GFK	25	65	5300	3800	5905	6300	3450	42	23	0.5	0.11
GFK	30	95	5000	3500	5906	7700	4600	47	23	0.5	0.13
GFK	35	204	4600	3200	5907	8200	5200	55	27	1	0.2
GFK	40	315	4200	3000	5908	8650	5750	62	30	1	0.3
GFK	45	370	3800	2500	5909	9200	6350	68	30	1	0.34
GFK	50	460	3400	2200	5910	9650	6950	72	30	1	0.36

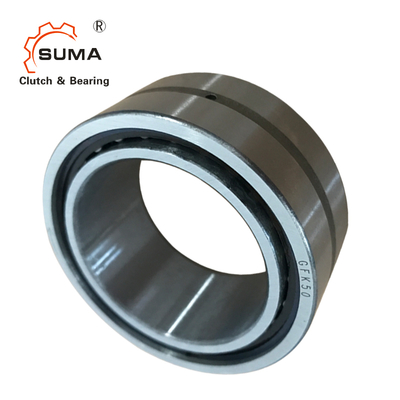

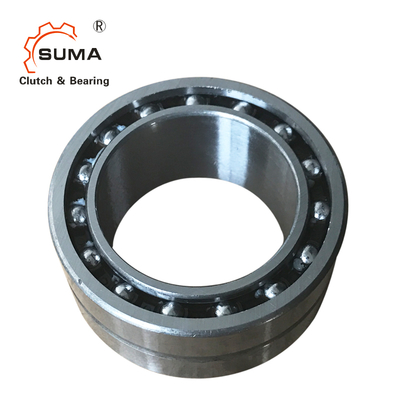

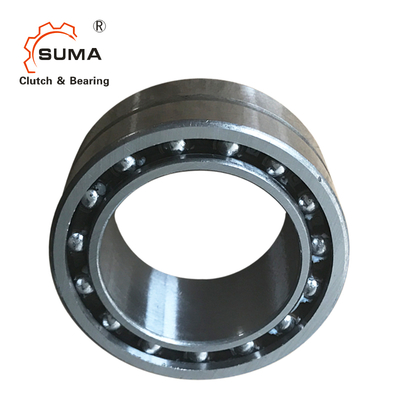

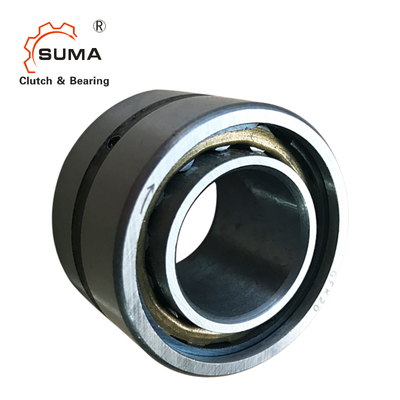

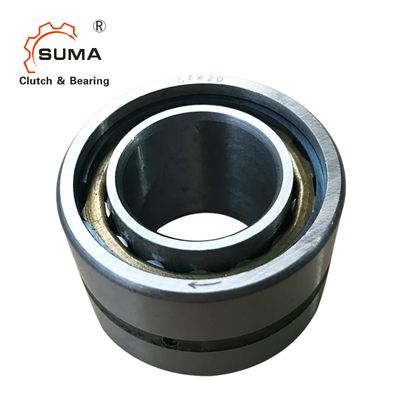

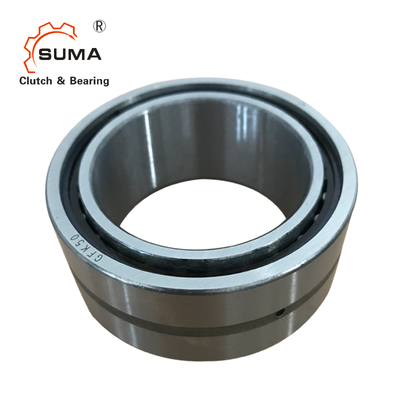

Product Images

Frequently Asked Questions

How do you pack the goods?

Small Items: Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
Heavy Items: Wooden Box / Wooden Pallet

Can I get the samples from you?

It is highly encouraged to ask for the samples for quality check.

Can you promise to deliver the goods in time?
